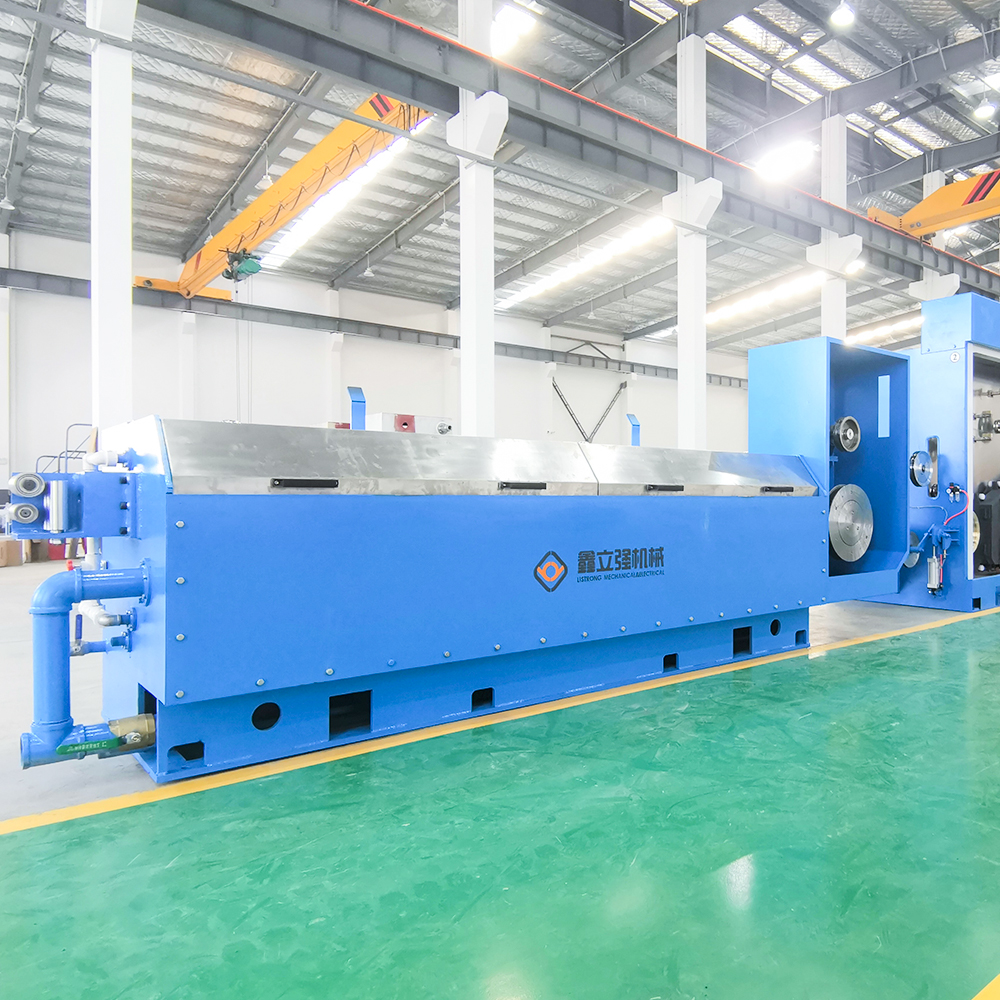

450-9D Copper wire rod breakdown machine system line

This type of equipment is designed for bare copper wire drawing. The complete set encompasses a wire drawing machine, an annealer, an electric control system, a pay-off stand, a take-up machine, a console, and other components. It is capable of drawing a copper bar with an initial diameter of Φ8.0mm down to a maximum final diameter of Φ3.0mm.

Get A Quote

Parameter
Contact Us

1. The high-precision gear transmission ensures stable operation.

2. With a straight drawing line, die-changing is made easy.

3. It enables steel basket changing without stoppage. Wire storage can be automatically achieved through button operation.

4. The electrical control parts are sourced from renowned domestic brands and advanced overseas brands.

5. Rust-proof treatment is carried out first, followed by painting as per requirements.

Model:	450-9D
Usage:	Bare copper wire drawing
Inlet diameter:	Ф8mm
Outlet diameter:	Ф2.5-3.5mm
Quantity of drawing dies:	9
Slip ratio of main machine:	20%
Slip ratio of last die:	17%
Supply of lubricate oil:	300L/min
Max. Drawing speed:	10m/s
Using motor/ main motor:	160KW
Machine's transmission method:	Motor drive triangle belt and triangle belt drive machine
Operation direction:	Right hand machine
Operation direction:	(from Left to right)
Colour:	As customer's need
Brand:	Liqiang or OEM
Voltage:	380V or Customized
Total noise:	<80db
