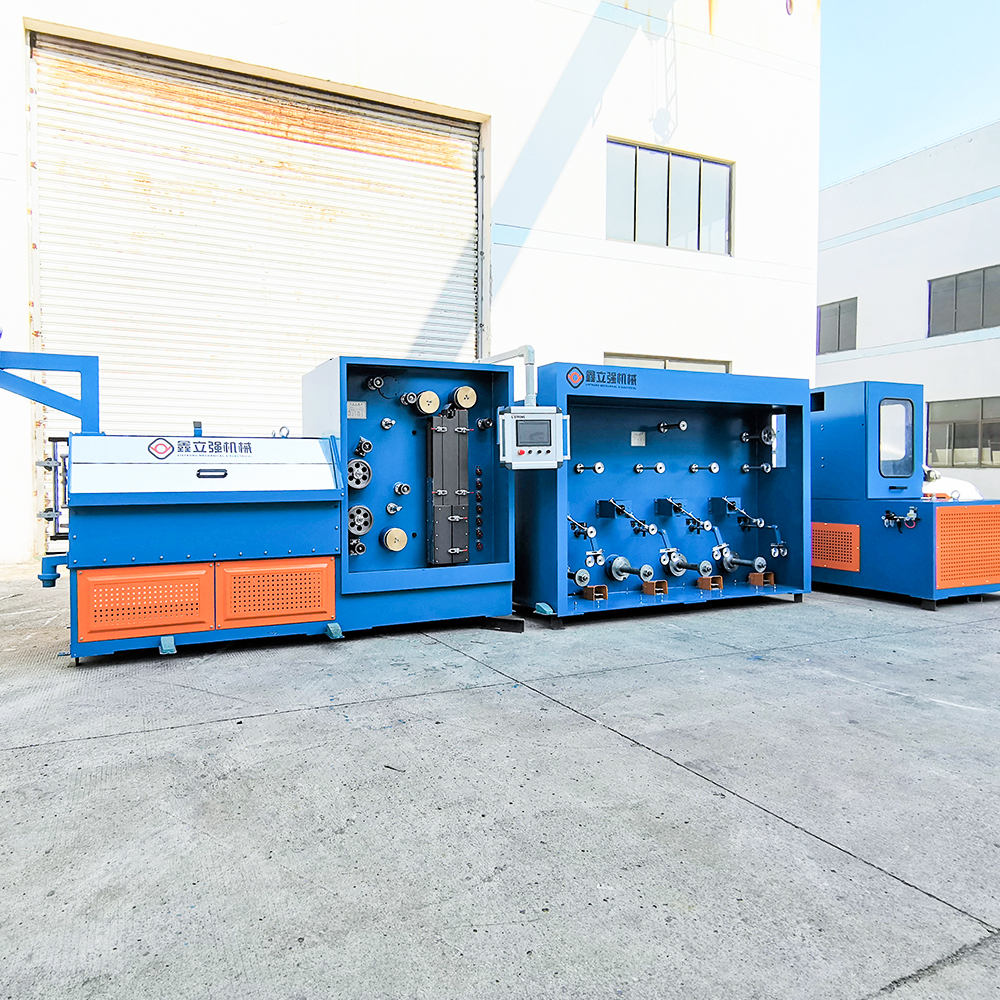

20-4DT Multi fine wire drawing machine annealer (4 lines)

This type of machine is designed by assimilating the technology of international advanced high - speed multi-head copper wire drawing machines. Equipped with 20 drawing dies, it is capable of simultaneously drawing four copper wires. It can automatically draw the inlet copper wires, with a maximum diameter of 4×1.6mm, down to a diameter range of 4×0.15 - 0.5mm at a high speed of 1500m/min. Compared to traditional single-line drawing machines, this type of machine is far more efficient. As a result, it has gained great popularity both at home and abroad.

Get A Quote

Parameter
Contact Us

1. With four drawing lines, the machine achieves higher efficiency.

2. Thanks to the independent tension control, the wire is less likely to break.

3. The use of imported electrical equipment ensures the machine operates more stably.

4. Equipped with an imported PLC, it is easy to control the machine's running status.

5. Environmentally friendly paint gives the machine surface a smooth finish, featuring a soft and uniform luster.

Model:	20-4DT
Usage:	Bare copper wire drawing
Quantity of drawing dies:	20
Inlet diameter:	4*Max.1.6mm
Outlet diameter:	4*0.15mm-0.5mm
Slip ratio of main machine:	15%
Slip ratio of last die:	8%
Max. Drawing speed:	1500m/min
Using motor/ main motor:	37kw
Correction system:	Automatically control
Annealing method:	DC three section annealing
Voltage:	380V or Customized
Brake:	Pneumatic brake
Brand:	Liqiang or OEM
Colour:	As customer's need
Operation direction:	Right hand machine
