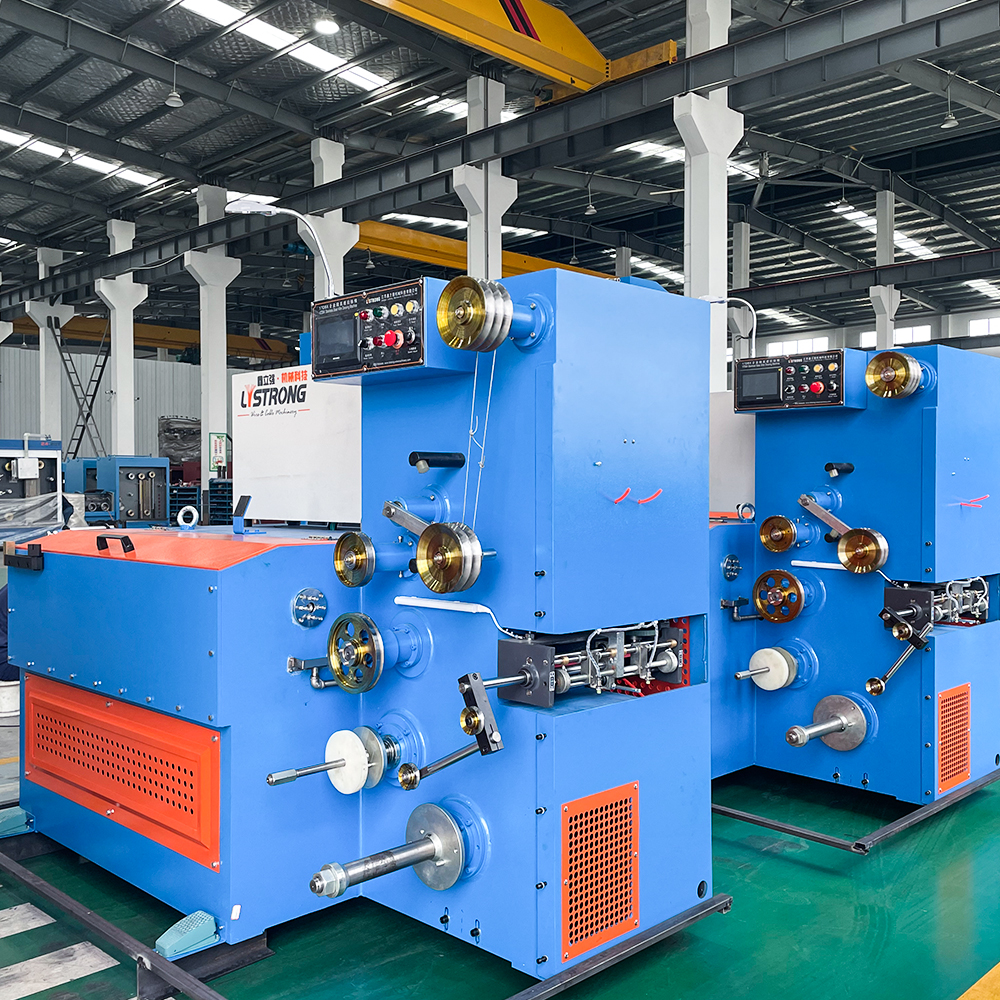

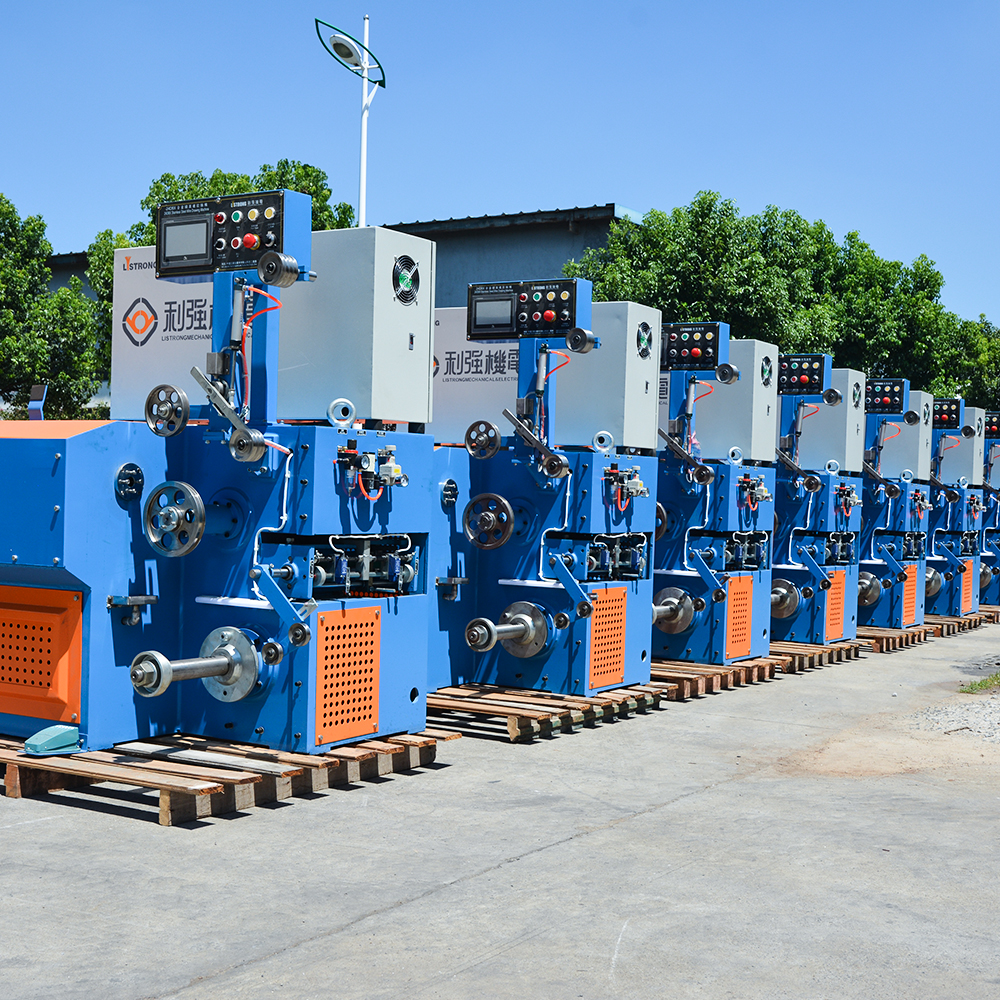

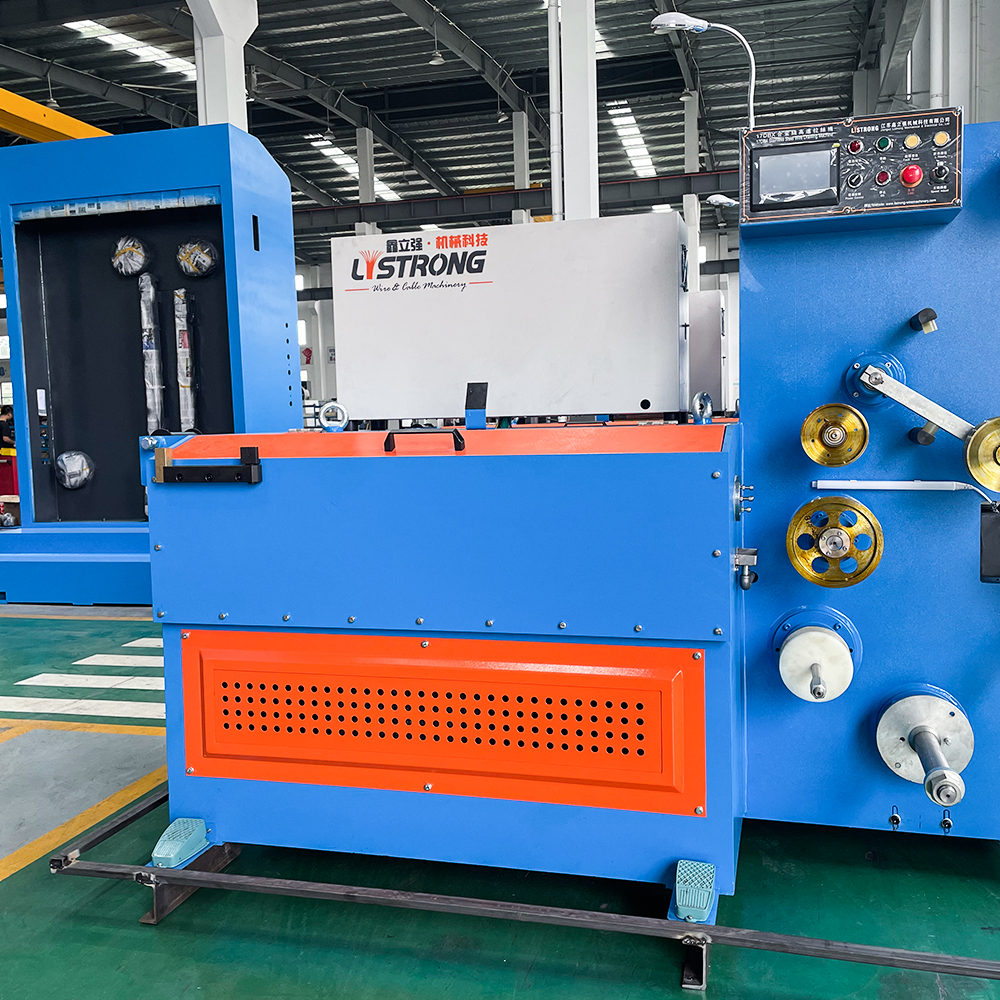

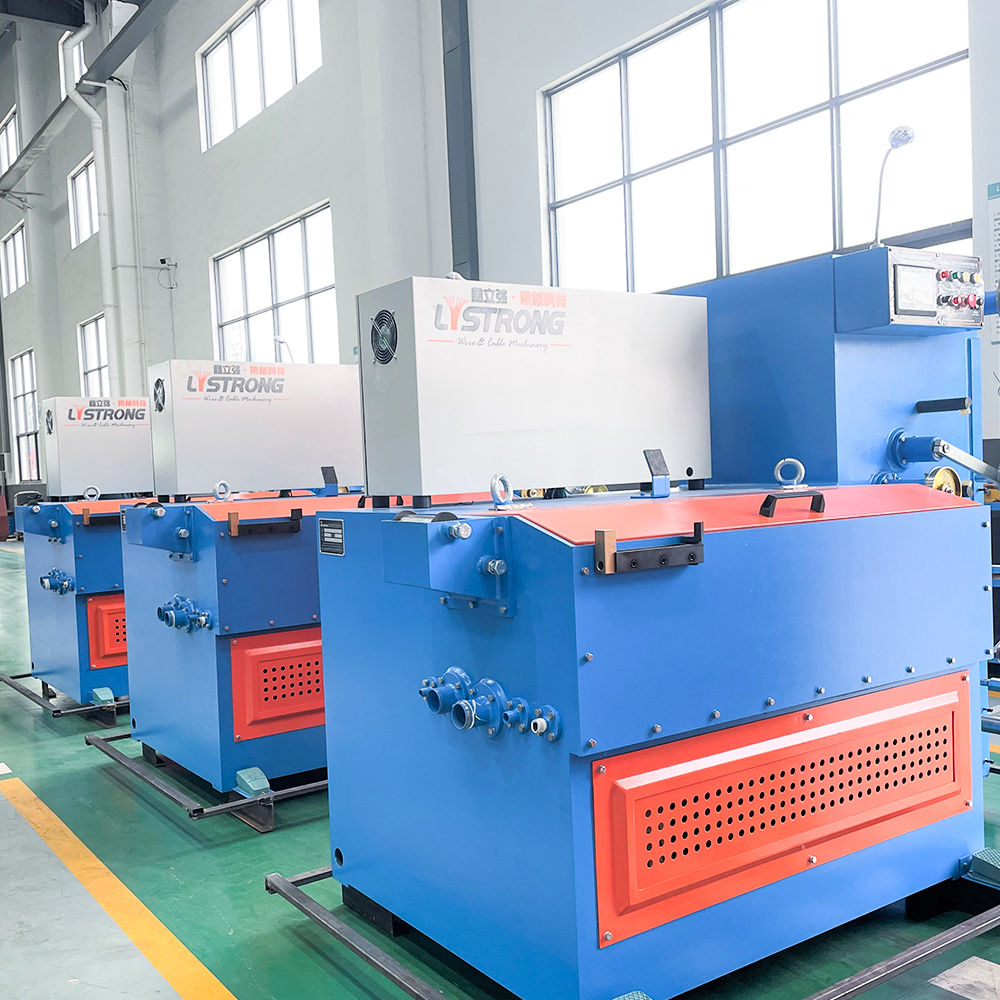

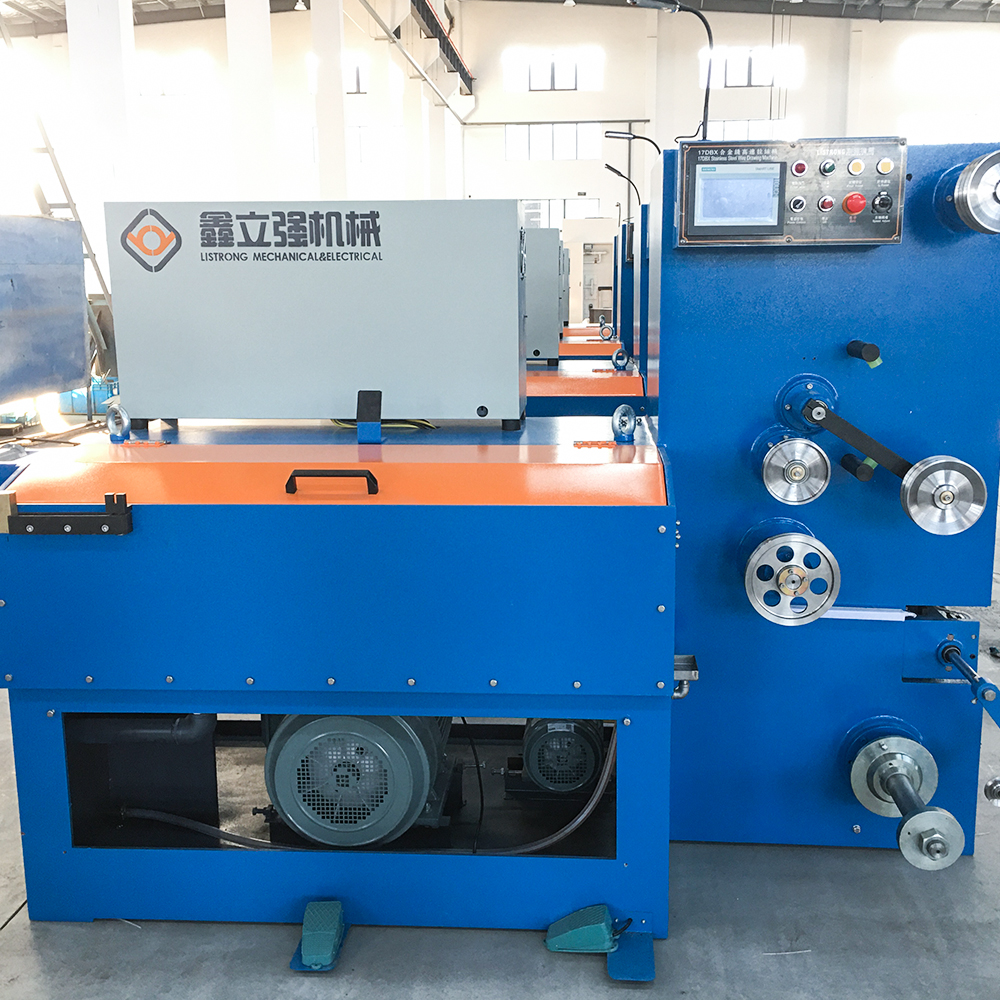

17DBX Steel wire automatic drawing machine with high speed

This type of machine was put into production several years ago. It is employed in the wire and cable industry to draw stainless-steel wire, reducing its diameter from Ф1.4 - Ф1.8mm to Ф0.5mm - Ф0.8mm. Boasting a high drawing speed and stable working performance, this machine has gained considerable popularity both at home and abroad.

Get A Quote

Parameter
Contact Us

1. Electrical Control Method: The spooling tension is pneumatically controlled and can be automatically adjusted. The machine is operated via a PLC + Touch-screen control system.

2. Environmentally friendly paint is used, ensuring greater safety and peace of mind.

3. The machine is equipped with imported electrical components, enabling fully automated production.

4. High-precision gear transmission is adopted, featuring low noise and long-term service life.

5. It has stable performance and is easy to operate.

Model:	17DBX
Inlet diameter:	1.4-1.8mm
Outlet diameter:	0.5-0.8mm
Quantity of drawing dies:	17
Slip ratio of main machine:	13%
Slip ratio of last die:	8%
Max. Drawing speed:	360m/min
Using motor/ main motor:	18.5kw
Usage:	Bare steel wire drawing
Correction system:	Automatically control
Annealing method:	DC three section annealing
Voltage:	380V or Customized
Brake:	Pneumatic brake
Colour:	As customer's need
Brand:	Liqiang or OEM
Operation direction:	Right hand machine
