24VB Supper fine steel wire high speed drawing machine

The stainless-steel wire-drawing machine is equipped with 24 drawing dies and is mainly employed to draw steel wire, reducing its diameter from Φ0.3mm - Φ0.09mm to fine wire in the range of Φ0.07mm - Φ0.02mm. This machine exhibits stable product-related performance and is highly favored by customers.

Get A Quote

Parameter
Contact Us

1. It features stable performance and is easy to operate.

2. It can automatically adjust to the take-up tension.

3. The double-cone take-up bobbin uses shaft-driven spooling to ensure consistent tension both inside and outside.

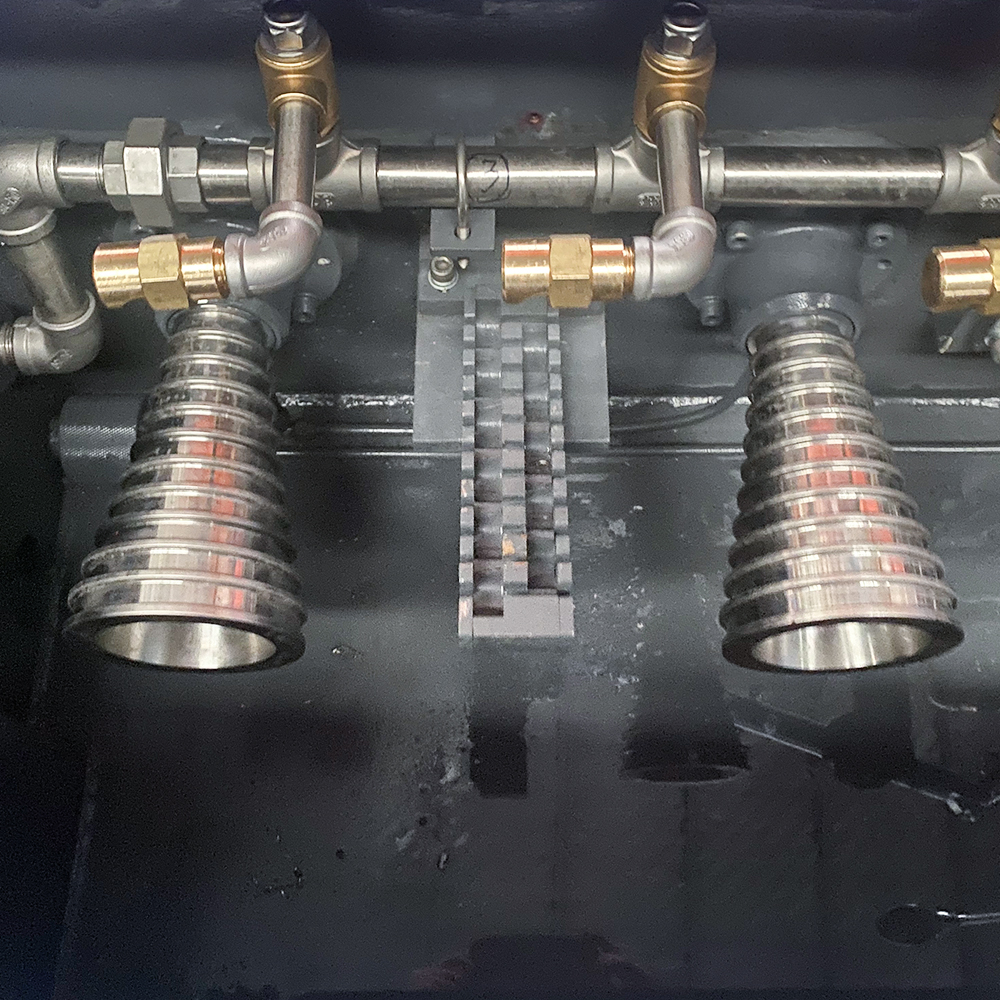

4. The horizontally arranged drawing capstans make operation convenient.

5. With the use of environmentally friendly paint, the machine has a higher gloss and a more appealing appearance.

Model:	24VB
Inlet diameter:	Φ0.45-0.7mm
Outlet diameter:	Φ0.03-0.12mm
Quantity of drawing dies:	24
Slip ratio of main machine:	9%
Slip ratio of last die:	6%
Max. Drawing speed:	1200m/min
Using motor/ main motor:	5.5kw
Usage:	Bare steel wire drawing
Correction system:	Automatically control
Annealing method:	DC three section annealing
Voltage:	380V or Customized
Brake:	Pneumatic brake
Colour:	As customer's need
Brand:	Liqiang or OEM
Operation direction:	Right hand machine
