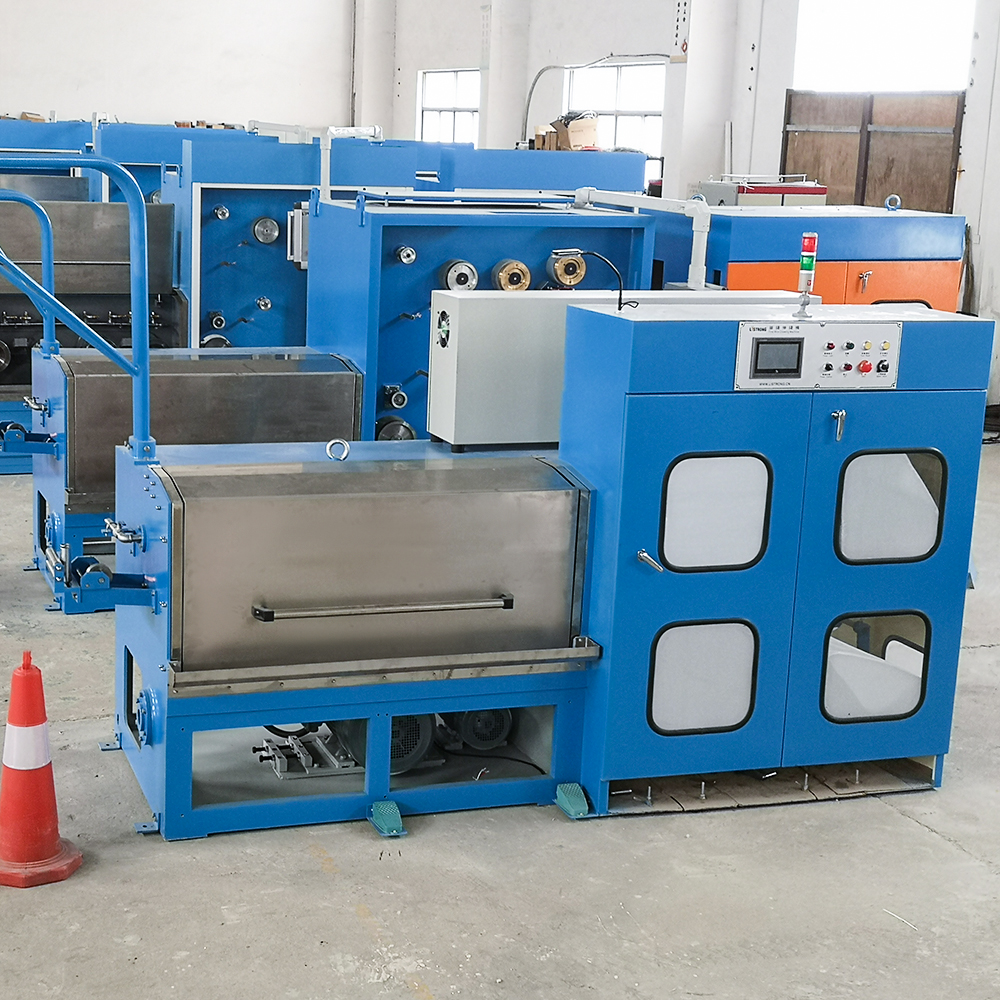

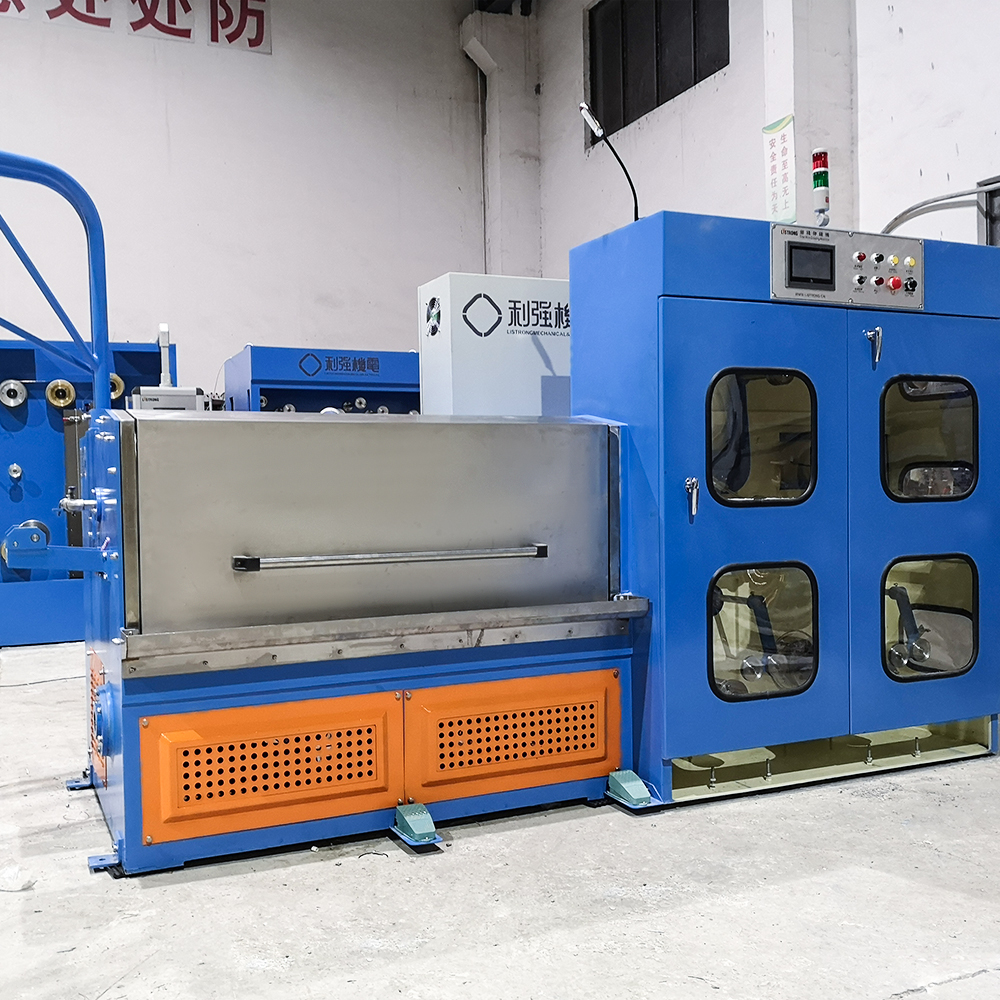

24-2DW Fine copper wire drawing machine (2 lines)

This type of machine is engineered with a two - copper - wire - drawing - line configuration. It has the capacity to draw two wires simultaneously. The machine can automatically transform the inlet copper wires, with an initial diameter range of 2X1.0mm - 1.6mm, into a final diameter range of 2X0.19mm - 0.5mm at a high speed of 2000m/min.

Get A Quote

Parameter
Contact Us

1. The machine is capable of drawing two wires simultaneously at high speed, significantly enhancing its efficiency.

2. With dual drives and motors for take-up, the drawing process is stable. The independent tension control system ensures that the wires are less likely to break.

3. Spray ceramic wire pulleys are employed, arranged in a configuration of 4 in 11 layers and 1 in the final layer, horizontally placed to facilitate easier threading.

4. The compact machine body design maximizes the space for guiding operations. The cover in the pull-drum area is sealed with a stainless-steel door cover that can be manually opened, presenting a beautiful and elegant appearance.

5. This device utilizes PLC + HMI for unified and coordinated control. The entire production line is equipped with automatic shutdown functions triggered by events such as reaching a set meterage, wire breakage, and system faults.

Model:	24-2DW
Inlet diameter:	2X1.0-1.6mm
Outlet diameter:	2X0.12-0.4mm
Quantity of drawing dies:	24
Slip ratio of main machine:	15%
Slip ratio of last die:	8%
Max. Drawing speed:	2000m/min
Using motor/ main motor:	22kw
Usage:	Bare copper wire drawing
Correction system:	Automatically control
Annealing method:	DC three section annealing
Voltage:	380V or Customized
Brake:	Pneumatic brake
Colour:	As customer's need
Brand:	Liqiang or OEM
Operation direction:	Right hand machine
