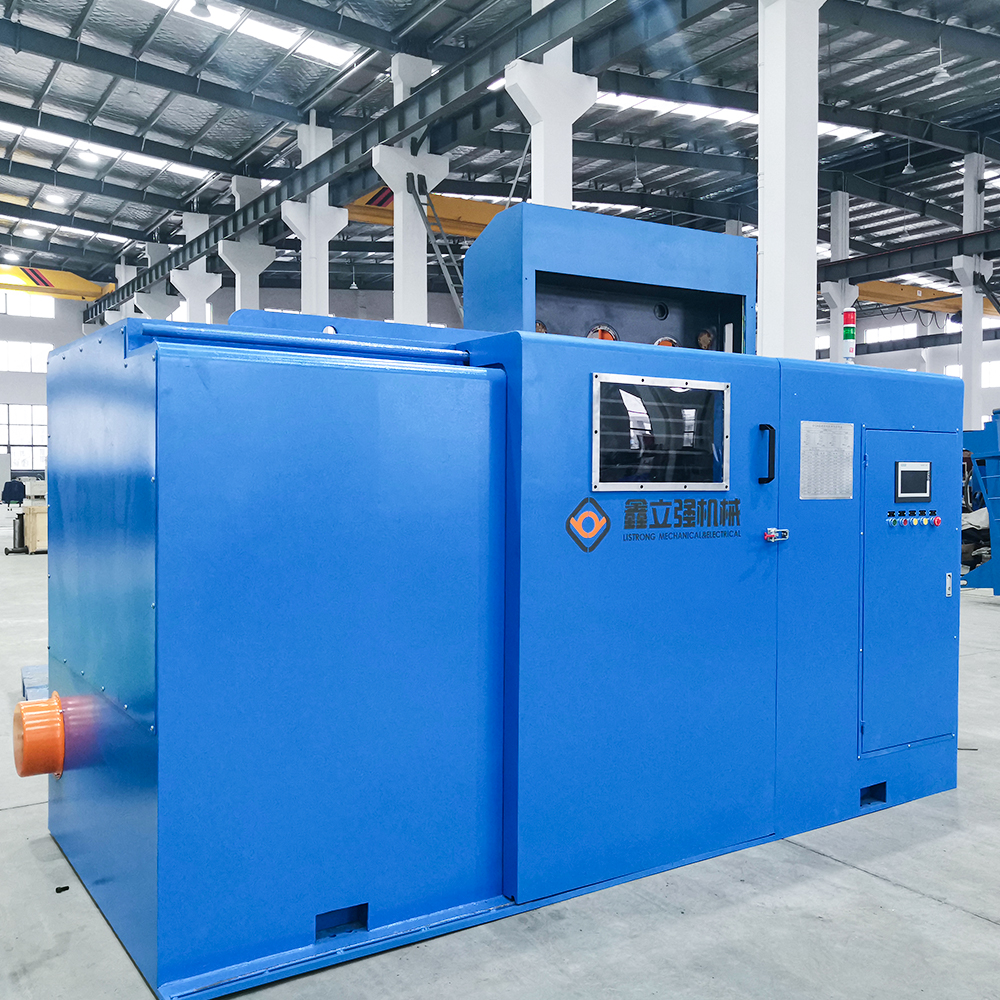

800P Automatic complete bunching machine system line with high speed

The double-twist bunching machine is a versatile mechanical device that can be extensively applied to twist a wide range of soft and hard conductor wires, including copper wire, enameled wire, tinned wire, copper-clad steel, copper-clad aluminum, etc., as well as electronic wires such as power lines, earphone wires, telephone wires, PVC - insulated wires, network cables, and more. It enables the twisting of multiple single conductors into a single strand, thus satisfying the process requirements for wire materials.

Get A Quote

Parameter
Contact Us

1. The manufacturing process of the machine is highly mature and efficient.

2. Equipped with high-precision gears, the machine operates more smoothly with low noise.

3. Equipped with imported electrical components, the machine is easier to operate via the screen.

4. Painted with green paint, the machines have an attractive appearance.

5. Equipped with a main-shaft meter counter, the machine can twist the same type of wire with a tolerance of only 0.01%.

6. It is easy to install and maintain.

Model:	800P
Max.rotating speed:	1200RPM
Inlet wire dia.:	Φ0.30mm-Φ1.32mm
Twisting section:	2.5-16
Twisting interval:	30(29.06mm-157mm)
Direction of twist:	S or Z adjustable
Take up spool:	Φ800*L600/max.
Reel top:	Φ50-Φ127 to be supplied as per spool size
Smooth rod rewinder:	Φ30mm
Main shaft center:	1000mm
Main shaft lubrication:	Grease lubrication
Main motor power:	15KW
Machine dimension:	3595L1950W1800H (mm)
