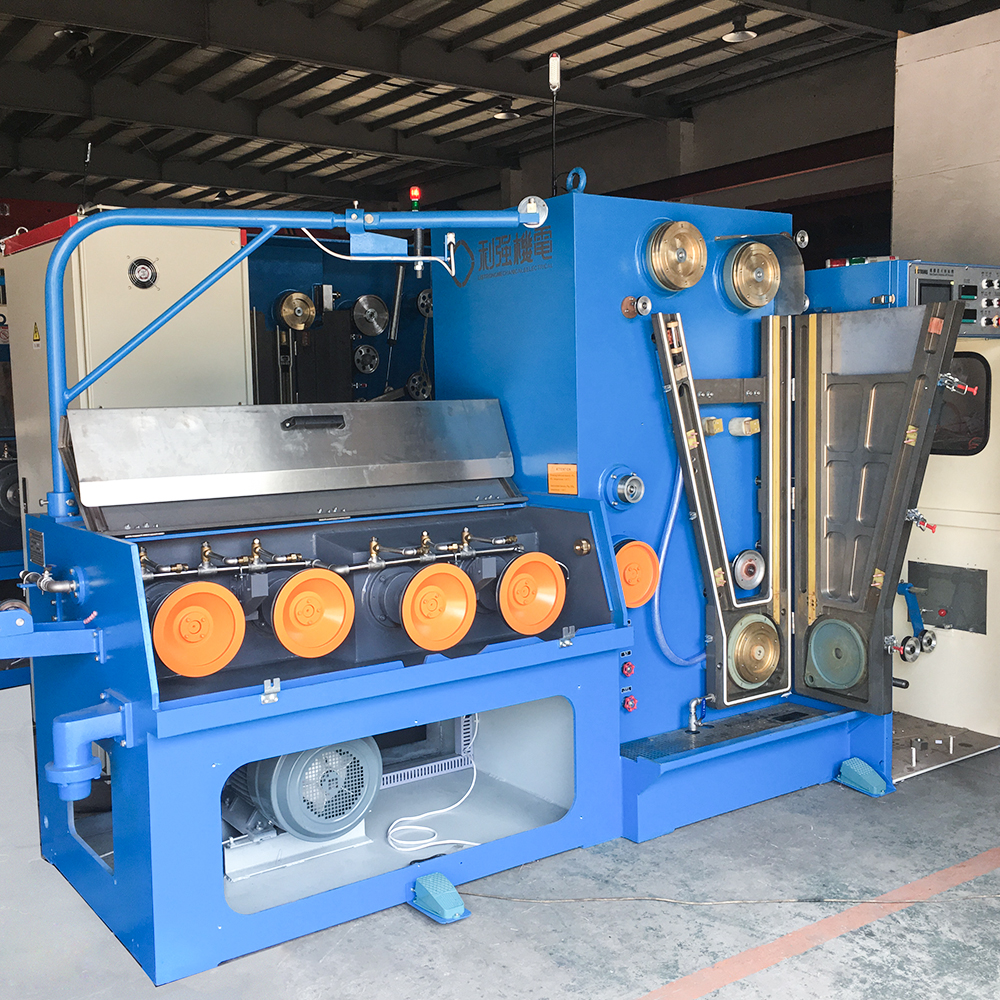

22DTA Copper cable fine wire drawing machine with continuous annealer

The copper wire drawing machine is a highly versatile and extensively - utilized device for manufacturing copper wires in a wide variety of sizes and shapes. Our machine incorporates advanced production technologies and processes imported from overseas. It has the ability to draw copper wire, reducing its diameter from an initial Φ1.6mm to a final diameter ranging from Φ0.15 - 0.6mm, at an impressive speed of 2000m/min. Featuring high production capacity and a reliable working performance, this type of machine has achieved significant popularity in numerous countries around the world.

Get A Quote

Parameter
Contact Us

1. The machine is extremely user-friendly and can rapidly generate a large quantity of copper wire, significantly enhancing production efficiency.

2. The machine is equipped with a high-precision control system. This enables it to produce top-quality copper wire, effectively meeting the diverse requirements of customers.

3. The machine is compact in size, making it adaptable to the space constraints of numerous factories.

4. The application of environmentally friendly paint not only endows the machine with an attractive appearance but also aligns with sustainable manufacturing principles.

5. The machine features a stable working performance and operates noiselessly, providing a quiet and reliable production environment.

Model:	22DTA
Inlet diameter:	1.6mm
Outlet diameter:	0.15-0.6mm
Quantity of drawing dies:	22
Slip ratio of main machine:	15%
Slip ratio of last die:	8%
Max. Drawing speed:	2000m/min
Using motor/ main motor:	18.5kw
Usage:	Bare copper wire drawing
Correction system:	Automatically control
Annealing method:	DC three section annealing
Voltage:	380V or Customized
Brake:	Pneumatic brake
Colour:	As customer's need
Brand:	Liqiang or OEM
Operation direction:	Right hand machine

About Us

Jiangsu Liqiang Mechanical & Electrical Co., Ltd.

Liqiang Mechanical & Electrical Co., Ltd., is a professional wire and cable production manufacturer with development design, whole plant planning and technical advice, manufacture, installation, commissioning and after-sales service in one. Offer Wholesale 22DTA Copper cable fine wire drawing machine with continuous annealer. Our main products are wire drawing machines, annealing machines, wire bunching machines and other related equipment for bare copper, copper alloy and stainless steel wire, etc.

Wholesale 22DTA Copper cable fine wire drawing machine with continuous annealer Suppliers and Company in China. We believe that perfect high-quality products only come from zero defective production process. Liqiang has adopted advanced production equipment and technology, scientific & standardized management systems and strict testing standards to ensure an internationally advanced level of quality , structure, performance and appearance. A post-sales service team with versatility and high efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products, well-trusted and supported, have been sold throughout China and Southeast Asia, the Middle East, South Africa and other regions.

Liqiang persisted in the principle of “ quality wins the market, integrity makes for the brand”.We make each component with all our mind and energy and to meet multiple requirements all from clients’ interests. We hope to create maximal value for the community as well as for clients.
